Database Design

Introduction

A database is a systematically organised collection of data stored and designed in a way that makes it easy to access, manage, and analyse information.

The Smart Health database will act as a foundationary repository for research data from which researchers can request data extracts for cardiovascular research projects. Any bona fide researcher will be able to apply to access the linked smartphone, wearable, and NHS datasets. This will facilitate research seeking to predict, prevent, diagnose and monitor any human disease.

The processing pipeline produces a range of daily summary metrics for physical activity, sleep, heart rate, and environmental exposures. These research-ready datasets will be linked to NHS data.

Note

The MVP focuses on developing the pipeline that generates the daily summary metrics.

---

Entity-relationship Diagram

An entity relationship diagram (ERD) is a high-level visual representation of a database’s design.

Below is the ERD for the database developed in the initial MVP phase.

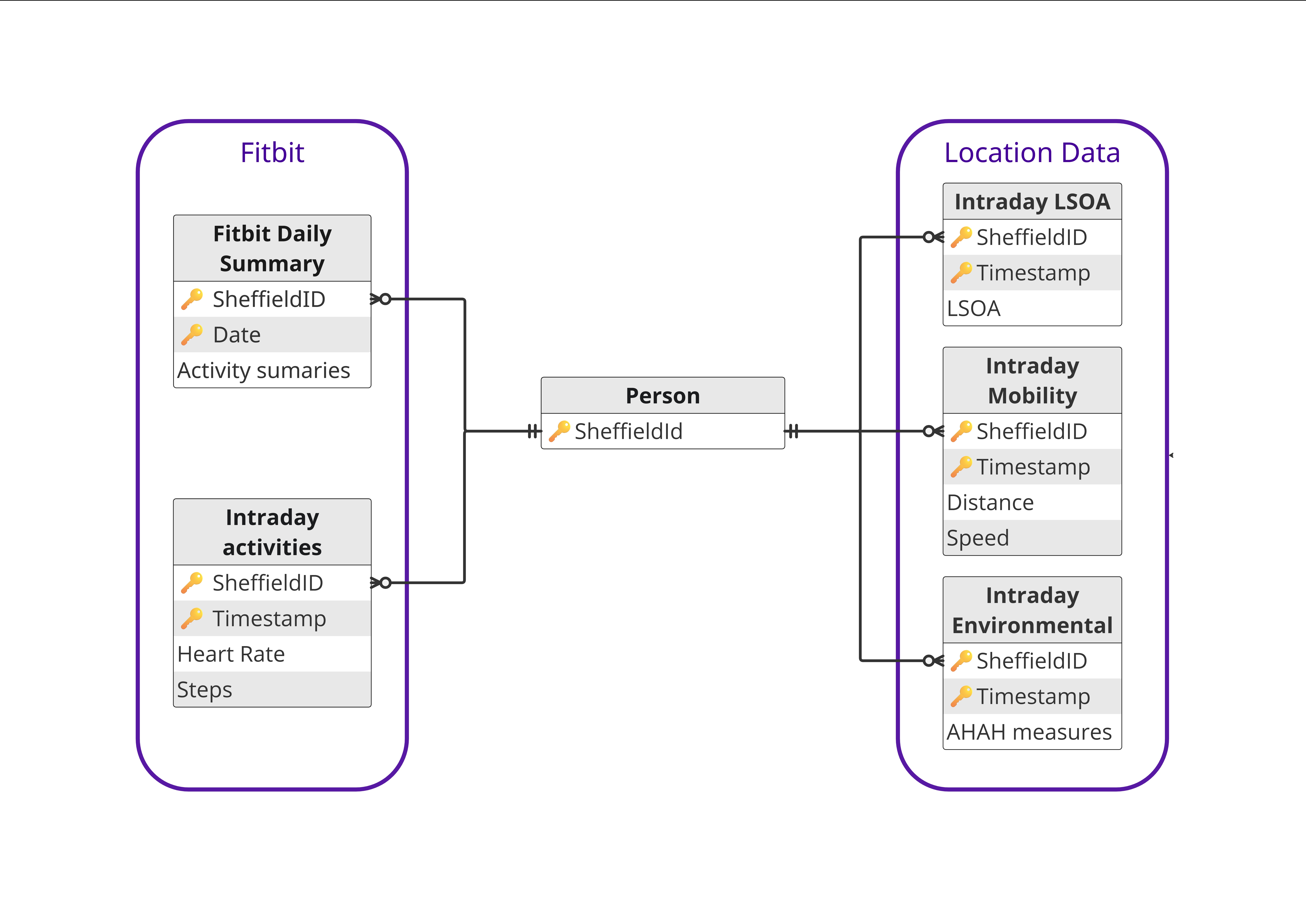

An ERD showing the relationships between the database tables containing Fitbit, processed GPS, and environmental data.

Each study participant is assigned a unique SheffieldID. If they have consented to sharing their Fitbit data, this SheffieldID will be linked to ‘Daily Summary’ and ‘Intraday Activities’ data in a one-to-many relationship - one participant can have many (or none) records in these data tables.

Similarly, if a participant has consented to sharing their GPS data, they can have many records of their intraday Lower Super Output Area (LSOA), mobility, and environmental data.

The data tables are linked to a participant by a composite primary key consiting of their SheffieldID and a date or timestamp that identifies each record.

Tip

A primary key is a unique identifier for a record in a table. A primary key can be a composite key which consists of two or more columns in a database table that uniquely identify a row.

---

Data Dictionary (MVP only)

Click the toggle button below to see the data dictionary of fields generated by the MVP pipeline.

This dictionary includes information about the field name, it’s data source, whether the field is from raw data or derived, a short description, and the metric units (where applicable).

Note that the units will remain constant as UK metric units. Daiser will be overriding a participants’ default units setting to unify the data as UK metric before data transfer.

Note that the AHAH Data Source refers to the Access to Healthy Assets & Hazards (AHAH) dataset ^{1 1}The data for this research have been provided by the Geographic Data Service (geods.ac.uk), a Smart Data Research UK Investment: ES/Z504464/1.. The reference data used is Version 4 (released 2024).

Download the data dictionary here

Table Name	Data Source	Database Field Name	Resolution	Field Type	Units	Description
Fitbit Daily Sumary	Fitbit	sheffield_id	permanent	source		Unique participant identifier
	Fitbit	timestamp	daily	source	date
	Fitbit	calories	daily	source	kcal
	Fitbit	minutessedentary	daily	source	mins
	Fitbit	minuteslightlyactive	daily	source	mins
	Fitbit	minutesfairlyactive	daily	source	mins
	Fitbit	minutesveryactive	daily	source	mins
	Fitbit	steps	daily	source
	Fitbit	heartratecardiominutes	daily	source	mins
	Fitbit	heartratefatburnminutes	daily	source	mins
	Fitbit	heartrateresting	daily	source	beats per min
	Fitbit	heart_average	daily	derived	beats per min
	Fitbit	heart_min	daily	derived	beats per min
	Fitbit	heart_max	daily	derived	beats per min
Intraday Activities	Fitbit	sheffield_id	permanent	source		Unique participant identifier
	Fitbit	date	5 minutes	source	date	Date of record
	Fitbit	time	5 minutes	source	time	Time of record
	Fitbit	timestamp	5 minutes	source	datetime	Date and time of record
	Fitbit	heart_mean	5 minutes	derived	beats per min	Average (mean) heart rate in aggregated time window
	Fitbit	heart_min	5 minutes	derived	beats per min	Minimum heart rate in aggregated time window
	Fitbit	heart_max	5 minutes	derived	beats per min	Maximum heart rate in aggregated time window
	Fitbit	heart_n_samples	5 minutes	derived	beats per min	Number of data points in aggregated time window
	Fitbit	steps_sum	5 minutes	derived		Total number of steps in aggregated time window
	Fitbit	steps_n_samples	5 minutes	derived		Number of data points in aggregated time window
Intraday LSOA	GPS	sheffield_id	permanent	source		Unique participant identifier
	GPS	date	5 minutes	source	date	Date of record
	GPS	time	5 minutes	source	time	Time of record
	GPS	timestamp	5 minutes	source	datetime	Date and time of record
	GPS	latest_lsoa21nm	5 minutes	derived		Lower Super Output Area Name
	GPS	latest_lsoa21cd	5 minutes	derived		Lower Super Output Area Code
Intraday Mobility	GPS	sheffield_id	permanent	source		Unique participant identifier
	GPS	date	5 minutes	source	date	Date of record
	GPS	time	5 minutes	source	time	Time of record
	GPS	timestamp	5 minutes	source	datetime	Date and time of record
	GPS	dist_travelled	5 minutes	derived	metres	Total distance travelled in aggregated time window, calculated from GPS movement
	GPS	mean_speed	5 minutes	derived	metres per sec	Average (mean) speed of travel in aggregated time window, calculated from GPS movement
	GPS	mobility_n_samples	5 minutes	derived		Number of data points in aggregated time window
	GPS	n_unique_lsoas	5 minutes	derived		Number of unique Lower Super Output Areas in aggregated time window
Intraday Environmental	GPS	sheffield_id	permanent	source		Unique participant identifier
	GPS	date	hourly	source	date	Date of record
	GPS	time	hourly	source	time	Time of record
	GPS	timestamp	hourly	source	datetime	Date and time of record
	GPS	env_n_samples	hourly	derived		Number of data points in aggregated time window
	AHAH	ah4blue	hourly	source	mins	Drive-time to nearest Bluespace (minutes)
	AHAH	ah4dent	hourly	source	mins	Drive-time to nearest Dentist (minutes)
	AHAH	ah4gp	hourly	source	mins	Drive-time to nearest GP Practice (minutes)
	AHAH	ah4hosp	hourly	source	mins	Drive-time to nearest Hospital (minutes)
	AHAH	ah4phar	hourly	source	mins	Drive-time to nearest Pharmacy (minutes)
	AHAH	ah4gpas	hourly	source		Normalised Difference Vegetation Index (NDVI) value indicating Passive Green Space. Low values of NDVI generally correspond to barren areas of rock, sand, exposed soils, or snow, while higher NDVI values indicate greener vegetation. Values range from -1 to 1.
	AHAH	ah4no2	hourly	source	micrograms per cubic meter	Annual mean Nitrogen Dioxide (ugm3)
	AHAH	ah4so2	hourly	source	micrograms per cubic meter	Annual mean Sulphur Dioxide (ugm3)
	AHAH	ah4pm10	hourly	source	micrograms per cubic meter	Annual mean Particulate Matter (ugm3)
	AHAH	ah4ffood	hourly	source	mins	Drive-time to nearest Fast Food Outlet (minutes)
	AHAH	ah4gamb	hourly	source	mins	Drive-time to nearest Gambling Outlet (minutes)
	AHAH	ah4pubs	hourly	source	mins	Drive-time to nearest Pubs/Bars/Nightclubs (minutes)
	AHAH	ah4tob	hourly	source	mins	Drive-time to nearest Tobacconists/Vape Store (minutes)
	AHAH	ah4leis	hourly	source	mins	Drive-time to nearest Leisure Centre (minutes)
	AHAH	ah4h	hourly	source		Health Domain Score
	AHAH	ah4g	hourly	source		Green/Bluespace Domain Score
	AHAH	ah4e	hourly	source		Air Quality Domain Score
	AHAH	ah4r	hourly	source		Retail Domain Score
	AHAH	ah4ahah	hourly	source		Access to Healthy Assets and Hazards Index Score
	AHAH	ah4ahah_rnk	hourly	source		AHAH Index Ranked
	AHAH	ah4ahah_pct	hourly	source		AHAH Index percentiles

---

Proposed tables (post-MVP)

After the initial MVP phase, development will continue to incorporate data streams from Baseline Questionnaires and Health App data, alongside linking the clean data to NHS records.

---

Database architecture

The Smart Health database has a data lake architecture, using Apache Parquet file formats stored in Amazon Web Services (AWS) Simple Storage Solution (S3) object storage. This object storage is often referred to as a “bucket”. S3 storage is cost-effective and highly scalable. It can also be scaled independently from the compute resources as needed.

The Smart Health database is entirely handled within a highly access-restricted RONIN cloud-computing environment.

This design is a highly-secured, cost-effective, and performance-optimised analytical data store. It prioritises security and compliance through the RONIN Secure Data Environment (SDE) while using an industry-standard data lake architecture to enable fast, scalable analysis.

Data Format

Data is stored as Apache Parquet files within the S3 buckets.

Apache Parquet is an open source, column-oriented data file format designed for efficient data storage and retrieval. It provides high performance compression and encoding schemes to handle complex data in bulk and is supported in many programming languages and analytics tools.

—parquet.apache.org

In summary, this format is fast to query, cost-effective, and avoids vendor lock-in.

Parquet files also contain schema metadata, enabling query engines to understand the data strcuture on the fly in a schema-on-read data processing approach.

Directory Structure

The Parquet files are structured within file directories analagous to a typical file explorer system.

As the expected data volume is large, each table will be divided into smaller chunks in a process called partitioning. Each dataset will be partitioned by date. This is discussed in detail below.

Overall, the directory structure containg the files is as follows:

Note

This structure outline corresponds to the MVP data only

└─ Clean Bucket
   ├── Daily Summary
   │   └── Year
   │       └── Month
   ├── Intraday Data
   │   ├── Environmental
   │   │   └── Year
   │   │       └── Month
   │   │           └── Day
   │   ├── Fitbit
   │   │   └── Year
   │   │       └── Month
   │   │           └── Day
   │   ├── LSOA
   │   │   └── Year
   │   │       └── Month
   │   │           └── Day
   │   └── Mobility
   │       └── Year
   │           └── Month
   │               └── Day
   └── Person

Data Partitioning

Data partitioning is an optimisation techique used in data lakes. Large datasets are physically divided into smaller, more managable sub-datasets using one or more specified columns. Typically, the columns used are frequently queried. For example, in the Smart Health database, we partition by date as the dataset is updated on a daily basis.

By partitioning the data, a query engine can read only the files needed for a particular query. This reduces the amount of data scanned and lowers query cost whilst improving performance.

Querying the database

The Data Connect team will use DuckDB ^{2 2}DuckDB is a simple, light-weight, and open-source database system. to query the Smart Health data lake.

There are a number of benefits of using this tool, including:

• DuckDB runs in-process, meaning no dedicated server infrastructure is needed to host the database; instead, the user’s virtual machine resources are used.

• DuckDB can read parquet files directly from the S3 bucket and leverage the data partitioning to only query the necessary data.

• As a columnar database, it is suited to analytical queries and makes use of the benefits of Parquet file formats

• DuckDB offers a host of advance SQL features referred to as “friendly SQL”, making queries easier and faster to write and execute.

Multiple data scientists will be able to concurrently read from the Smart Health database to create research data extracts.

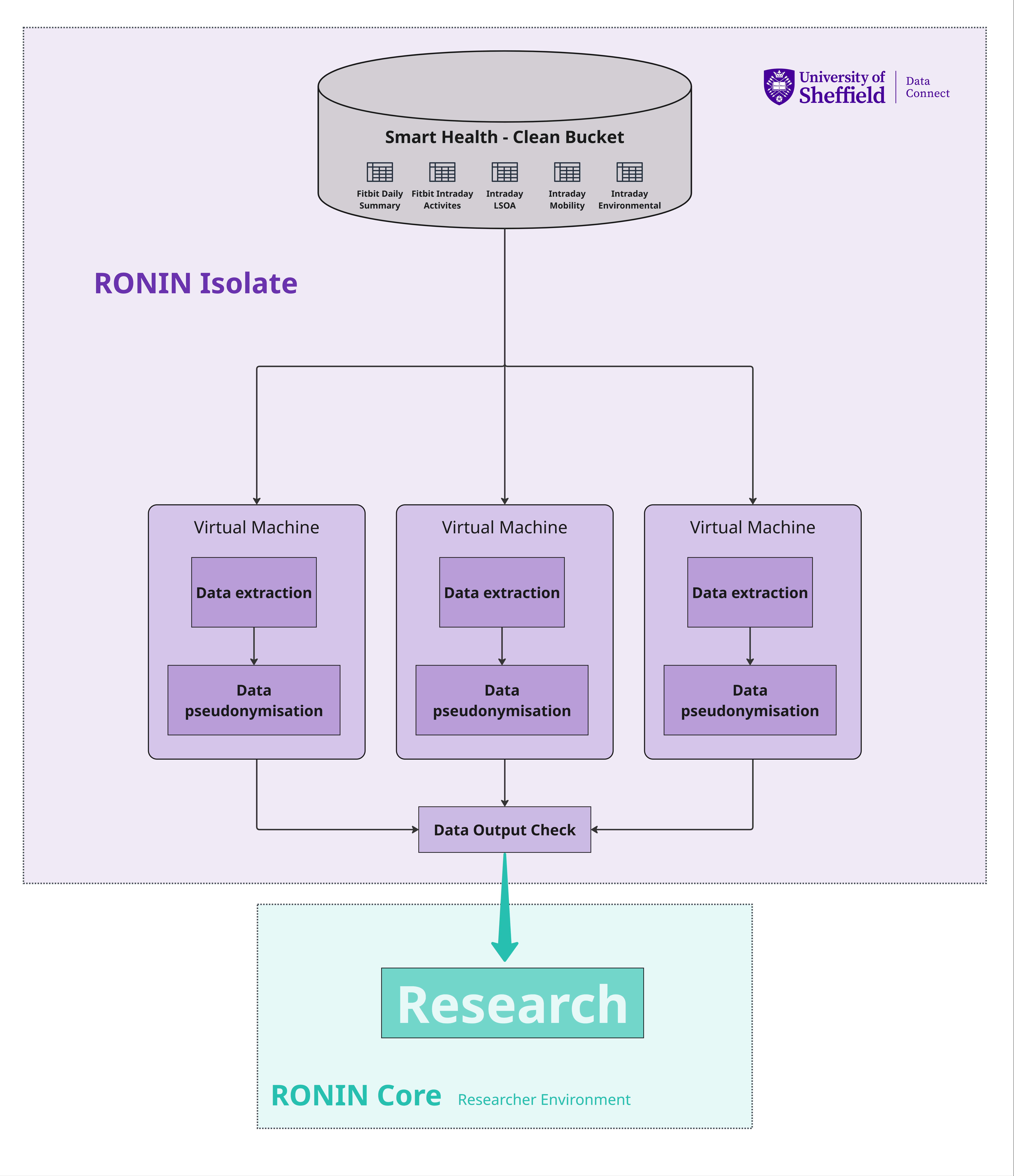

The Smart Health database can be simultaneously queried by multiple virtual machines within the RONIN Isolate environment. After egress checking, fully pseudonymised data extracts from the Smart Health database can be transferred to researchers’ Secure Data Environments in RONIN Core

---
